LED STINGRAY MKII - Compact Primary Torch
The LED STINGRAY MARK II is a professional, high-performance compact torch suitable for primary or backup light applications, known for its excellent power-to-size ratio and convenient charging.
-
Power and Output: Delivers up to 1300 lumens (10W total power); approximately 2 hours runtime on full power.
-
Beam Type: Highly focused 12º spot beam with a 30º corona, optimized for penetration and signaling.
-
Power Source: Integrated, rechargeable 21700 Li-Ion battery with a USB Type-C charging port (not included)
-
Number of LEDs: 3 x high-efficiency CREE LEDs.
-
Construction: Built from durable, hard-anodized aluminum and Delrin®; depth rated to 200 m.
-
Switching: Simple and reliable twist on/off mechanism.
LED STINGRAY MKII - Compact Primary Torch
One torch. Endless possibilities.
LED STINGRAY is a compact, high-performance torch with 1300 lumens, a focused 12° spot and up to 2 hours of runtime, rated to 200 m. It works as a reliable backup light and as a primary light for demanding divers.
Rechargeable, and charged directly through its own USB-C port.
The 21700 battery has a built-in USB-C port. Charge it from a power bank, a laptop or a car charger, with no separate charger needed. The battery is not included with the torch.
Long operating time
Up to 2 hours of continuous light from a 21700 battery. The battery keeps over 75% of its capacity after 500 charge cycles.
Built-in protection
Integrated PCM circuitry protects the battery against overcharging, deep discharge and short circuits.
No memory effect
Top up the battery between dives. It does not shorten the battery's lifespan.
Battery use
Only batteries marked by Ammonite System are guaranteed to fit. Other 21700 cells can differ in diameter and length.
Plug the USB-C port into any power source. The LED is red while charging and blue when full.
Keep the battery charged between dives.
Use a battery marked by Ammonite System for a correct fit.
Built for the water
Focused 12° spot
Three high-efficiency CREE LEDs and a triple lens give a focused 12° spot with a 30° corona, for penetration and signalling.
Hard-anodised aluminium head
The head is machined from aluminium with a thicker hard-anodised layer and laser-engraved markings. The body is Delrin® (POM), and 6 mm tempered glass protects the LED. Rated to 200 m.
COMPACT PRIMARY LIGHT
Build your own compact primary set

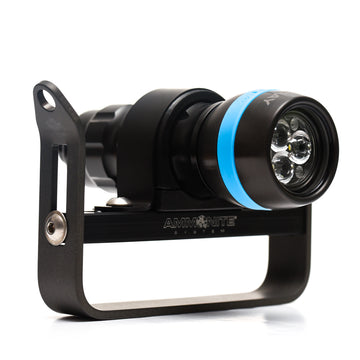

1. Torch: LED STINGRAY with the Goodman handle adapter as standard, for comfortable hands-free use. 120 mm long and 40 mm in diameter, 137 g without the battery and 210 g with it.

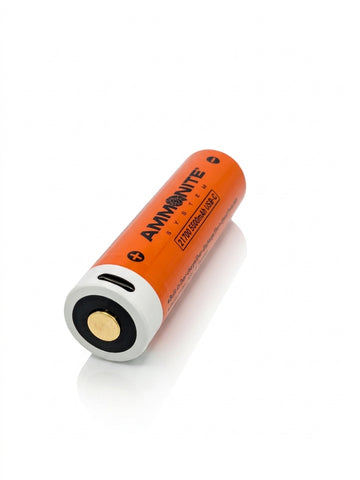

2. Battery: one 21700 Li-Ion battery with USB-C charging. The battery is not included and must be bought separately. Use a battery marked by Ammonite System for a correct fit.
MAKE IT YOURS
Customize your light

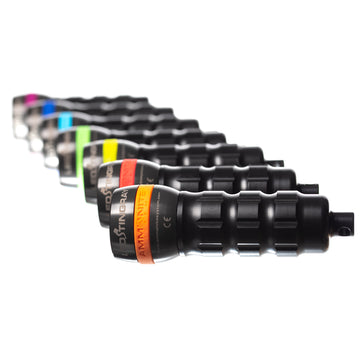

Choose a silicone band in your favourite colour to tell your torch apart on the boat and to match your kit. The band fits over the body of the torch.
Specification
