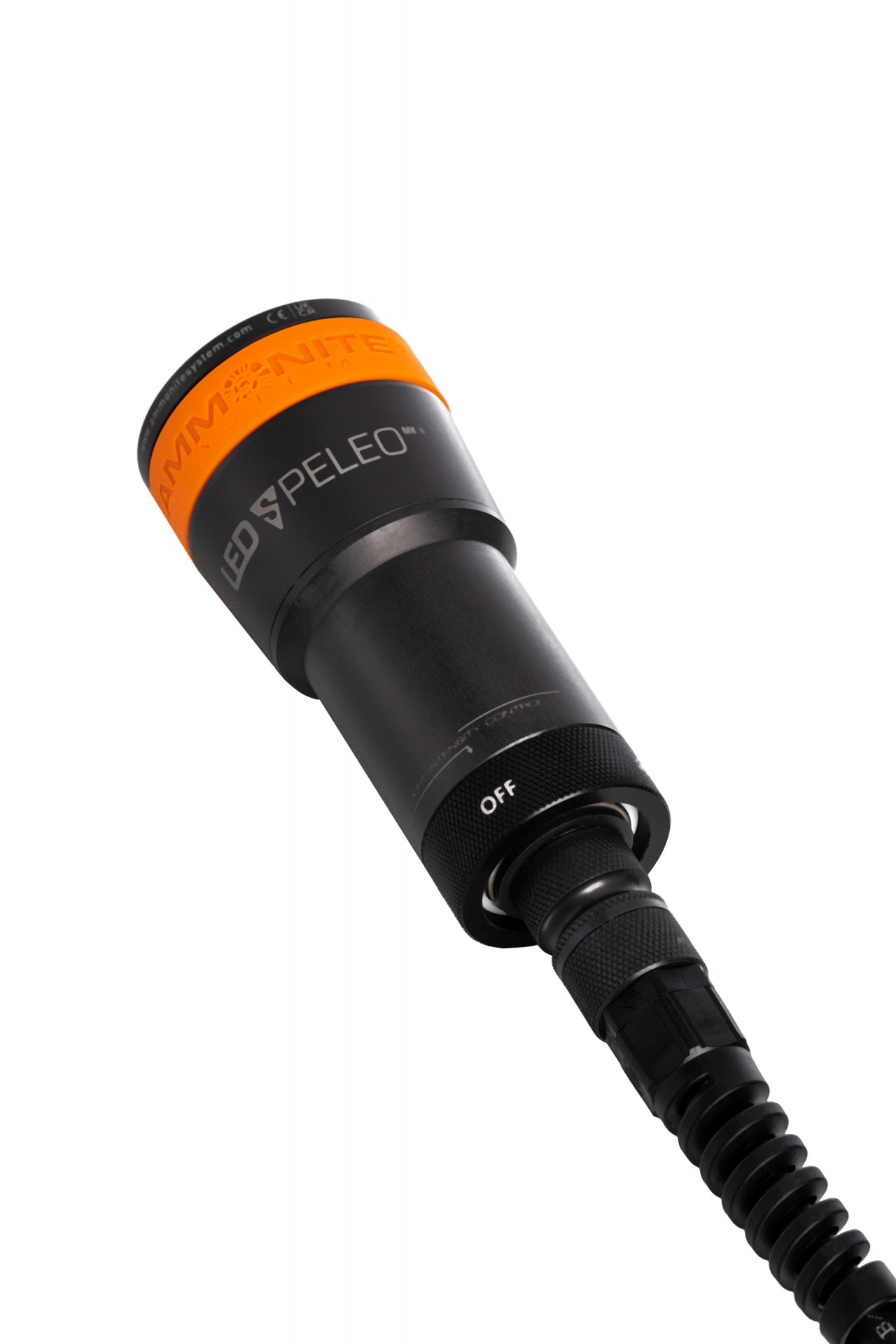

The LED SPELEO MKII is a specialized Primary Light designed for uncompromising performance in the most demanding technical diving conditions. Its optical system has been precisely engineered to provide a powerful, concentrated light source with a high degree of clarity.
Developed specifically for cave exploration (speleology), it features an extremely narrow and tightly focused 6° beam. This characteristic ensures excellent light penetration and facilitates effective team communication even in challenging underwater environments. The robust, ultra-durable head construction offers superior resistance to impacts and abrasion—factors inherently associated with cave and wreck diving. As a result, your light source remains reliable exactly when you need it most.
The LED SPELEO MKII head is fully integrated into the modular Ammonite System, ensuring complete compatibility and versatility with all the manufacturer's ACCU battery packs.
- Output: High power output up to 3000 lumens (32W total power).
- LED Source: Utilizes one highly efficient LUMINUS SST-70 LED emitter, providing stable, cool white light output.
- Intensity Modes: Features 3 optimized intensity levels (BOOST, OPERATIONAL, BACK-UP) controllable via the head-mounted magnetic switch, allowing the diver to precisely balance brightness and runtime.
- Runtime: Provides exceptional operating time, lasting up to 29 hours in OPERATIONAL mode when paired with a high-capacity accu (Type 24).
- Power Source: Requires connection to an external Ammonite System battery pack.
- Beam Type: Ultra-narrow, highly focused 6º beam, specifically designed to create a "tunnel" of light that penetrates turbid water and effectively eliminates backscatter.
- Optics: Achieved using a specialized 1x reflector system, complemented by a mild halo effect for enhanced peripheral awareness and communication.
- Front Glass: Protected by 6 mm tempered glass.
- Materials: Solid, heavy-duty head construction built from aerospace-grade hard-anodized aluminum and durable Delrin®.
- Max Depth: Certified for an operational depth of 200 m (656 ft).
- Design: Compact and low-snag profile (116 mm length, 53 mm diameter) designed for ease of use in restrictions; weight in water is only 100 g.
- Modularity: Fully interchangeable with all Ammonite System cables, accu packs, and mounting systems (e.g., Goodman Handle).
- Switching: Controlled via an easy-to-operate magnetic switch on the light head.
- Discharge Warning: Includes an integrated discharge warning message (strobe flash) alerting the diver to critical low battery status.
- Emergency Mode: Features the critical "Take Me Home Mode," which automatically engages when the accu is depleted, providing over one hour of low-level light for a safe return to the surface.
LED SPELEO MKII SET
LED SPELEO MKII OPERATING TIME
Measured in operational / boost mode + over 1h TAKE ME HOME MODE
SPECIFICATION
Specification
Ergonomic Design & Power Management
Maximum power, minimal footprint.
Optimized Control & Compact Design
Experience professional-grade lighting control combined with a lightweight build that doesn't compromise on durability.
- 3-Step Intensity Control: Easily toggle between BOOST (maximum illumination), OPERATIONAL (optimal balance), and BACK-UP (extended runtime) via the magnetic switch.
- Ultra-Compact Dimensions: With a head length of only 116 mm and a diameter of 53 mm, it is designed for superior maneuverability.
- Featherweight in Water: Despite its heavy-duty construction, the head weighs only 262 g on land and a mere 100 g when submerged.
- Goodman Handle Ready: Its slim profile makes it the ideal choice for use with Ammonite System handles for effortless handling during long dives.
Precision Performance
The legendary 3000-lumen beam designed for technical exploration.
Surgical Precision Underwater
The LED SPELEO MKII light head is the ultimate tool for divers who demand total control over their environment. It’s not just about brightness; it’s about where that light goes.
- Razor-Sharp Focus: Features a highly focused 6° beam that cuts through heavy sediment and silty water with ease.
- 3000 Lumens of Clarity: Powered by a LUMINUS SST-70 LED, providing a powerful, cool white light output.
- Optimal Awareness: While focusing on the target, the mild corona ensures you stay aware of your surroundings and dive team.
- Extreme Durability: Built from hard-anodized aluminum and DELRIN®, pressure-tested to withstand depths of up to 200 meters.
Greater Safety with Status Signaling
Never be left in the dark.
Guaranteed Light When You Need It Most
The LED SPELEO MKII is engineered with an advanced microchip system designed to prioritize your safety during critical underwater explorations.
- Active Monitoring: The system provides constant status signaling and low battery alerts to keep you informed throughout your dive.
- Strobe Warning: When energy levels run low, the light signals the user with a distinct strobe flash.
- Take Me Home Mode: After the warning, the device automatically switches to a backup mode providing over 1 hour of additional operating time.
- Secure Ascent: This reliable reserve ensures divers have more than enough time to finish their dive and return to the surface safely.

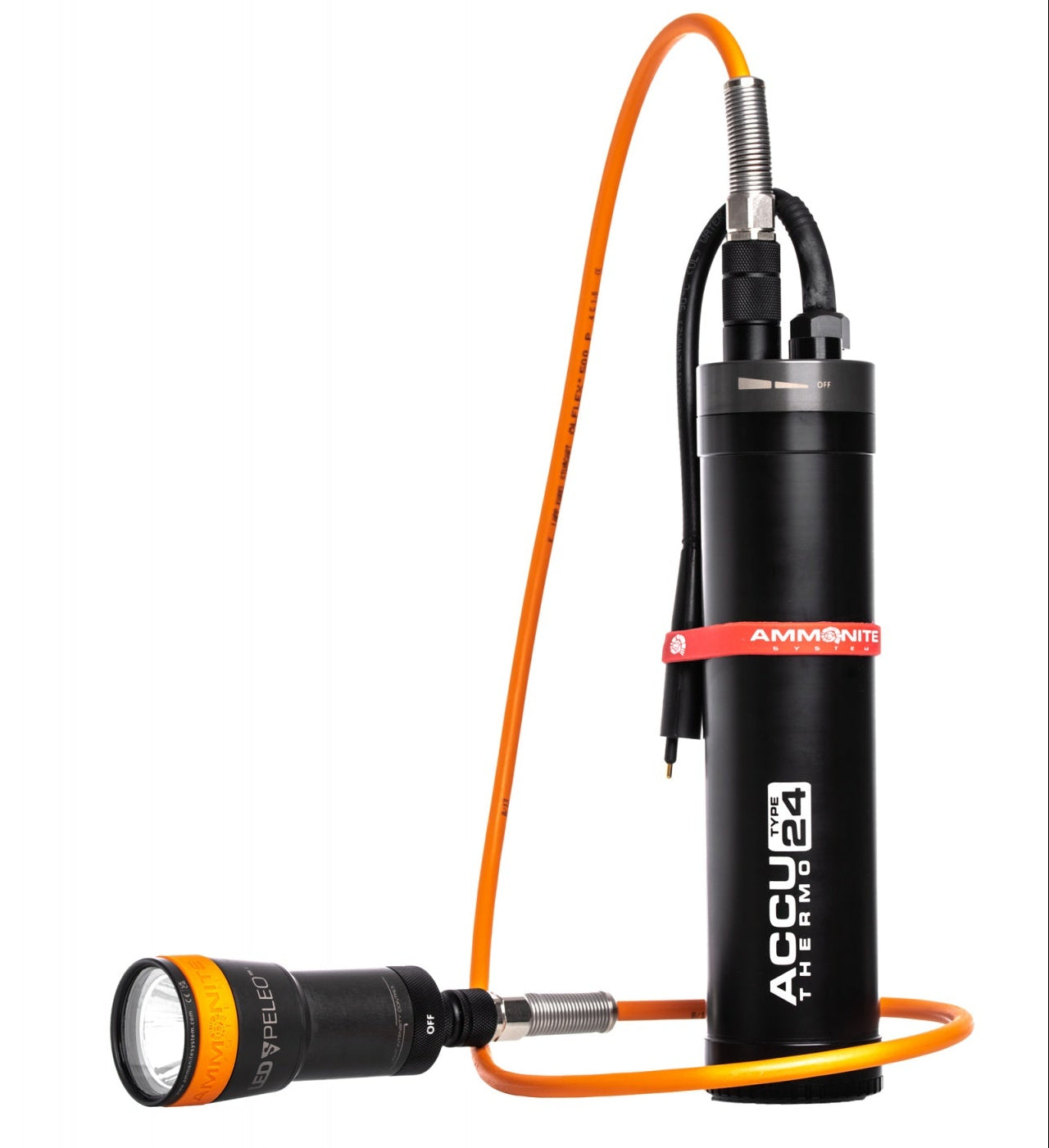

Everything You Need for Professional Exploration
our LED SPELEO MKII bundle arrives as a complete, ready-to-dive system.
To ensure maximum protection and organization, each part of your kit is packed separately within one collective box:
- LED SPELEO MKII Headlight – The heart of your system with instruction manual.

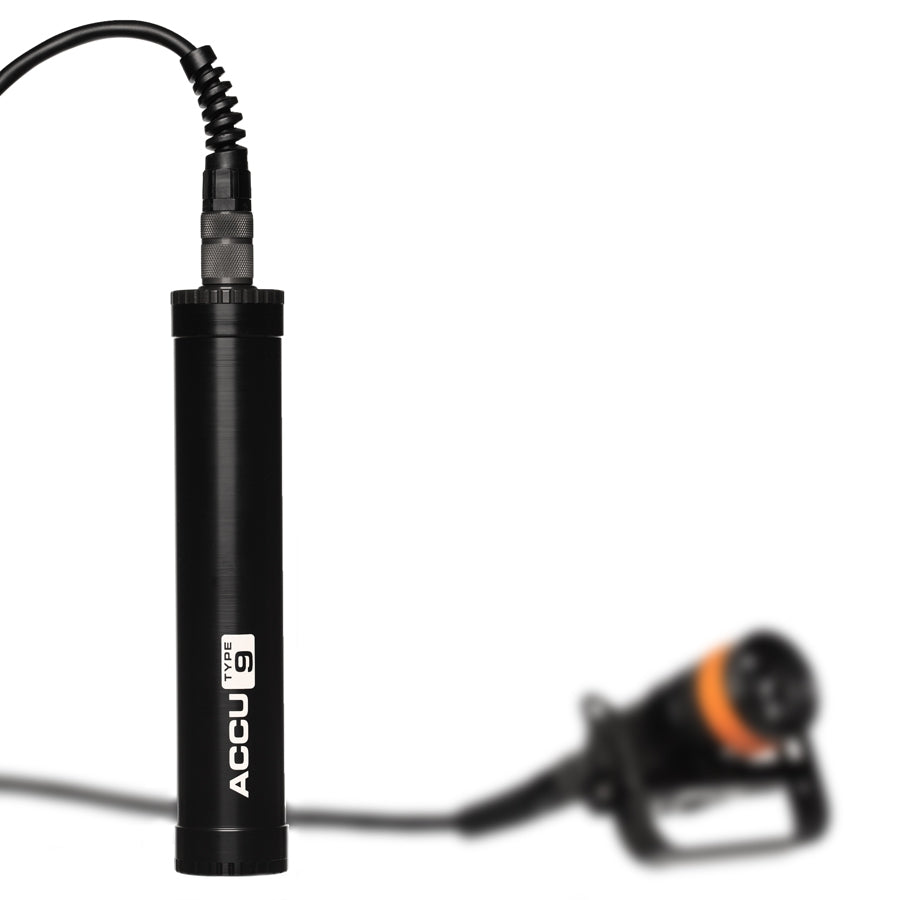

- Selected ACCU Battery – Your choice of power source (Type 9, 14, or 24) with instruction.
- Connecting Cable – Heavy-duty umbilical cable to link your power and light.
- Dedicated Charger – High-quality charger for your specific battery type.
- Maintenance Kit – Includes spare O-rings for long-term reliability.
- Quality Guarantee – Full set of manuals, warranty card, and quality certificate.
