ACCU THERMO TYPE 24 SPECIAL
-
Estimated Delivery:Jun 08 - Jun 12
-
Free Shipping: Available
The ACCU THERMO TYPE 24 SPECIAL is the highest-capacity, most versatile power source in the series, engineered for professional deep and expedition diving. This unit provides maximum energy for both high-power umbilical lights and heated dive wear, distinguished by its specialized connection configuration that offers unmatched flexibility and reliability in managing multiple power demands simultaneously. It is built to guarantee continuous, long-duration power on the most demanding projects.
-
Capacity & Energy: Ultra-high nominal capacity of 24 Ah (Ampere-hours); Total energy of 288 Wh (Watt-hours).
-
Voltage: Standardized 12 V output compatible with Ammonite System lights.
-
Specialized Dual Connectivity: Features two distinct E/O output ports, allowing for flexible and independent connection of the light head and the heating system.
-
Three-Stage Heating Control: Easily manage the heat output of your dive wear with settings for 0%, 70%, and 100% output.
-
Intelligent Safety: Equipped with an "Intelligent E/O" circuit to protect against electrolysis and a BMS (Battery Management System) for safe operation and extended battery life.
-
Max Heating Time: Provides continuous power for up to 4.5 hours (when powering a 40W heating vest) or up to 8 hours (for a 20W vest).
-
Durable Construction: The casing is made from hard-anodized aluminum and Policatal (POM C), with a safety exhaust valve and a 3-year warranty.
-
Status Indicator: An integrated LED light on top of the battery shows the current charge level and system status.
-
Certified for Transport: Complies with UN Transportation Testing (UN/DOT 38.3), making it safe for travel.
-
Eco-Friendly: Packaged in recyclable cardboard.
-
See detailed comparison of ACCU Thermo batteries.
Runtime for Light Head (Example): Powers a 50W Solaris NextGen light head for up to 5.8 hours.
ACCU THERMO TYPE 24 SPECIAL
ACCU THERMO TYPE 24 SPECIAL OPERATING TIME
SPECIFICATION
Specification
CHOOSE YOUR ARMOR: STANDARD VS. SPECIAL
Selecting the right housing for your exploration style.
Aluminum performance or polymer agility?
While both models share the same advanced electronic heart and 281 Wh capacity, the choice between them comes down to your environment. The TYPE 24 SPECIAL is not higher-capacity than TYPE 24 — it is reinforced for greater depth.
- ACCU THERMO 24 (Polymer Agility)
Features a lightweight and durable Delrin® (polymer) and aluminum housing. Ideal for travel and streamlining gear, with an operational depth rating of 100 m. - ACCU THERMO 24 SPECIAL (Aluminum Armor)
Built with a full hard-anodized aluminum body for extreme mechanical resistance in tight caves or wrecks. Specifically reinforced for extreme exploration with a depth rating of 200 m. - Buoyancy & Weight
The aluminum SPECIAL is heavier on land (1400 g) but actually lighter in the water (600 g) compared to the polymer version (710 g), which assists in perfecting underwater trim. - Shared Technology
Both units feature the same 3-stage power control, LED charge indicators, intelligent E/O protection, and essential safety valve.
Dual-Purpose Power Hub
The ultimate energy source for extended cold-water missions.
Simultaneous Light and Heating Control
The ACCU THERMO TYPE 24 SPECIAL is specifically engineered to manage two critical systems at once. Unlike standard batteries, it features a specialized electronics suite designed to power both your high-output light head and your drysuit heating system.
- Two-Step Switching: Equipped with a dedicated magnetic switch that allows you to manage power delivery independently, ensuring your light remains steady while your heating is active.
- Intelligent Heat Management: The internal electronics are optimized to handle the high current draw of heating vests and gloves without compromising the performance of your primary light.
- Voltage Stability: Provides consistent power output to both connected devices, ensuring reliable warmth and visibility throughout the entire dive.
Military-Grade "Special" Construction
The ultimate energy source for extended cold-water missions.
Built to survive the most punishing underwater environments.
The "Special" designation means this canister is built to a higher standard of physical resilience. It is designed for explorers who push their gear to the absolute limit in caves, wrecks, and deep-sea conditions.
- Hard-Anodized Armor: The housing is crafted from a specialized aluminum alloy with a thick hard-anodized layer for maximum scratch and corrosion resistance.
- Shock-Resistant Delrin®: Both the top and bottom caps are machined from high-density Delrin®, providing superior impact protection and thermal insulation.
- Deep-Water Integrity: Featuring a reinforced double O-ring sealing system, the canister is pressure-tested and certified for safe operation at depths of up to 200 meters.
Operation & Power Management
Precision control for extended missions.
Three-Stage Power Adjustment
The ACCU THERMO 24 SPECIAL features an advanced power control system designed to maximize efficiency and comfort in cold water.
- Effective Energy Management: The system offers three-stage power control (0%, 70%, 100%), allowing you to manage energy consumption and extend battery life.
- Tactile Magnetic Switch: Power is regulated by a large magnetic switch featuring a distinct, mechanical step that is easily noticeable, even when wearing thick diving gloves.
- Simplified Control: The intuitive design ensures that adjusting your thermal comfort and lighting is seamless, regardless of the diving conditions.
Intelligent LED Monitoring
Stay informed with the integrated LED indicator..
Real-Time System Feedback

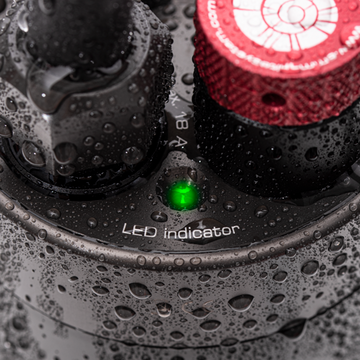

The LED indicator is located on the top cover of the battery, providing critical information about the charge level and the operating status of the entire system.
- Battery Charge Level: Upon activation, the indicator lights up for 4 seconds to show the current capacity: Green steady (75%-100%), Green blinking (50%-75%), Red blinking (25%-50%), or Red steady (less than 25%).
- System Readiness: After the initial charge check, the LED switches to indicate the connection status: two red flashes followed by one green flash means the battery is ready, but the E/O receiver is not yet connected.
- Active Connection: Once a receiver is detected, the E/O circuit becomes active, and a steady green light confirms the system is functioning properly and supplying power.
Flagship Protection & Safety
Advanced safety features for peace of mind.
Engineered for Reliability
This flagship model is built with multiple layers of protection to ensure both the equipment and the diver are safe under extreme pressure.
- Safety Valve: The canister is equipped with a safety valve that protects the battery from internal pressure buildup, which is essential during transport and altitude changes.
- Advanced BMS: An integrated Battery Management System (BMS) protects the high-capacity Li-Ion cells from over-charging, deep discharge, and short circuits.
- Rugged Construction: Made from hard-anodized aluminum with Delrin® caps, the "Special" version is pressure-tested for depths up to 200 meters.
- Secure Attachment: In its standard version, the battery is fitted with a fixed webbing loop for stable mounting on a 50mm hip belt.
MODULARITY & COMPATIBILITY
Versatile power for any mission.
The Heart of a Modular System
The ACCU THERMO 24 SPECIAL is not just a battery; it is a central hub designed to be part of an interchangeable and fully compatible diving system. This modular approach ensures your equipment remains adaptable as your diving needs evolve.
- Universal Connection Standard: The battery is equipped with a standard chinch-type connector for lighting and an E/O cord for heating, making it compatible with all Ammonite System light heads and heated dive wear.
- Independent Power Management: Thanks to the modular design, you can easily swap light heads or change cables in the field without needing to replace the entire power source.
- System Growth: Start with a single light head and expand your setup by adding heated vests or gloves, all powered by the same reliable ACCU THERMO 24 SPECIAL unit.
- Reliability Through Simplicity: The modular components allow for quick maintenance and easy configuration changes between dives, whether you are in a cave, on a wreck, or in open water.
What is included in the set?
We offer the ACCU THERMO as a comprehensive kit, ensuring you have everything needed for reliable power and thermal comfort from day one. Every component is selected to meet the highest standards of technical diving.
- ACCU THERMO – Your flagship power source with integrated E/O cord and magnetic switching.
- Universal Mounting Handle – A robust fastening system for stable attachment to your harness or hip belt.
- AMMO LITHIUM CHARGER – A dedicated, high-performance charger designed specifically for Ammonite System Li-Ion packs.
- Maintenance & Protection Kit – Includes a blind plug for the E/O cord, a silicone band, and two spare silicone O-rings for long-term reliability.
- Ammonite Butter – Our specialized silicone grease to keep your connections and seals in perfect condition.
QUALITY THAT YOU WERE LOOKING FOR
Industry-Leading 3-Year AMMOPOWER Warranty: Your investment is protected with our comprehensive 3-Year Extended Warranty. This covers defects in materials and workmanship on all dive lights and heating systems, demonstrating our commitment to superior product longevity and reliability, straight from the manufacturer.
